OEE Engine

Q: Where do the numbers come from?

The Historian, which holds the counts, run states, and downtime for every reporting asset. The OEE Engine computes each factor from those records.

Q: Does it roll up past a single asset?

Yes. The same calculation answers at site, area, line, and asset, so a line total reconciles to its assets.

Q: Can we compare one period against another?

Yes. Every factor recomputes for any date range you pick, at whichever level you are looking at.

Q: How are longer trends kept?

A daily record is written per asset and can be backfilled across a past range. Trends read those records.

Loss ledger, Weld Line 1 38 min Availability 22 min Performance 14 min Quality

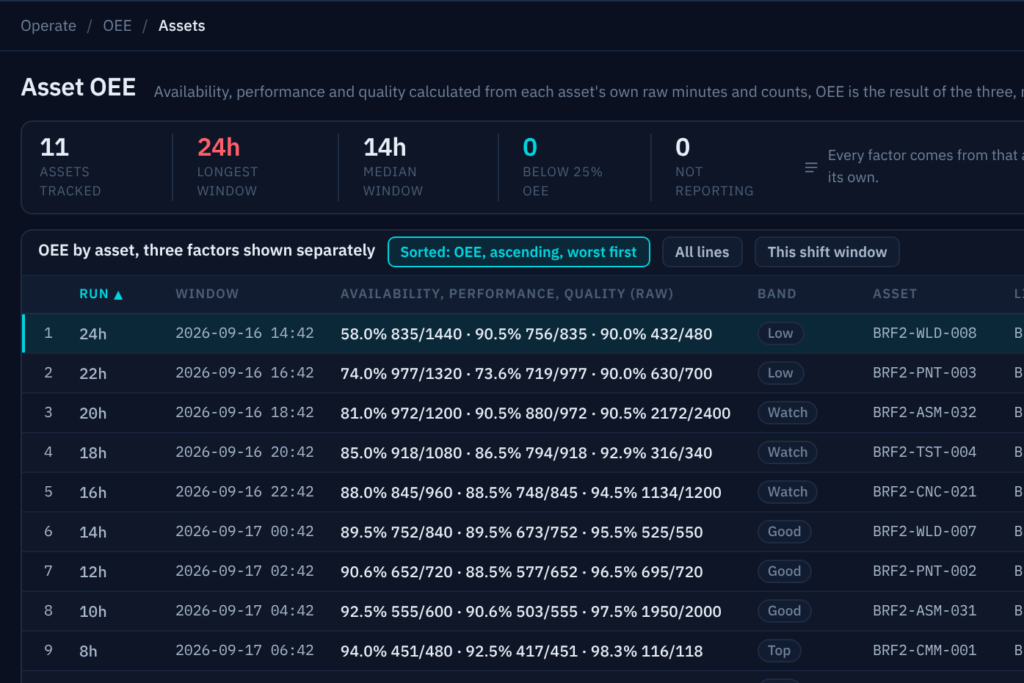

Asset OEE

See which factor pulled your OEE down

A single OEE number hides why it moved, so each factor gets its own calculation. Availability comes from run state and downtime. Performance comes from actual cycle time against target. Quality comes from good units against rejects and rework.

Availability, from run state and recorded downtime
Performance, from actual cycle time against target
Quality, from good units against rejects and rework

OEE roll-up Northbay Industrial Brantford Plant 2 Machining Cell A

OEE roll-up

Roll OEE up from one machine to the whole plant

One calculation answers for a single machine and for the whole plant. Pick a site, area, line or asset and any date range. A line total always adds up to its assets.

Site, area, line, and asset, from one calculation
A line total that reconciles to its own assets
Every roll-up runs over the range you choose

Live line status: Weld Line 1 BRF2-LN-03 68.3 Slow
Performance factor moved

Live line status

Watch which assets are running, faulted or idle

Every reporting asset shows running, faulted or idle as it happens. Filter to what’s down and see which factor it’s costing you, before anyone writes the shift report.

Current state on every asset in the list
Filter the list to faulted or idle
State sits beside the factor it moved

OEE, Weld Line 182.6

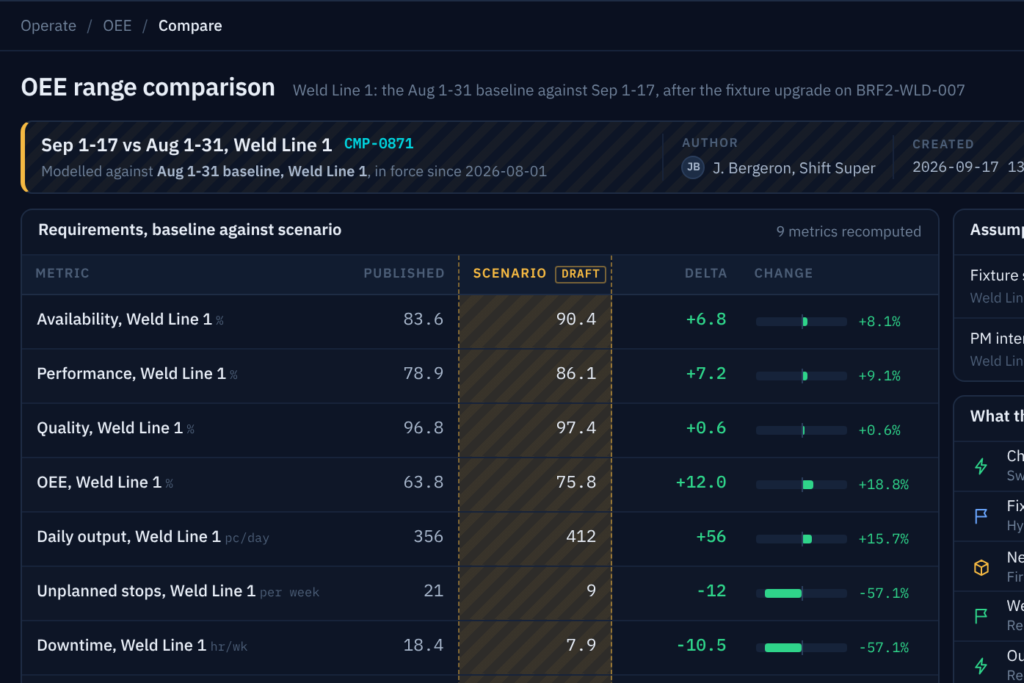

Range comparison

Compare this week against last

Pick two date ranges and every factor recalculates for each. Put this week against last, or one run against another, side by side.

Any date range, at asset, line, area, or site
This week against last, or one run against another
Charts with tooltips that name what each figure is

OEE trend, 90 days82

Daily records

Pull up a year of OEE trend in one load

Each day the engine writes a record for every asset, so a year of trend loads without re-reading every raw reading. Need history from before you started? Backfill a past range.

A daily snapshot per asset, stored as a record
Backfill the records across a past range
Trends read those snapshots instead of the raw series

Site OEE, this shift 84.2
Also on command center

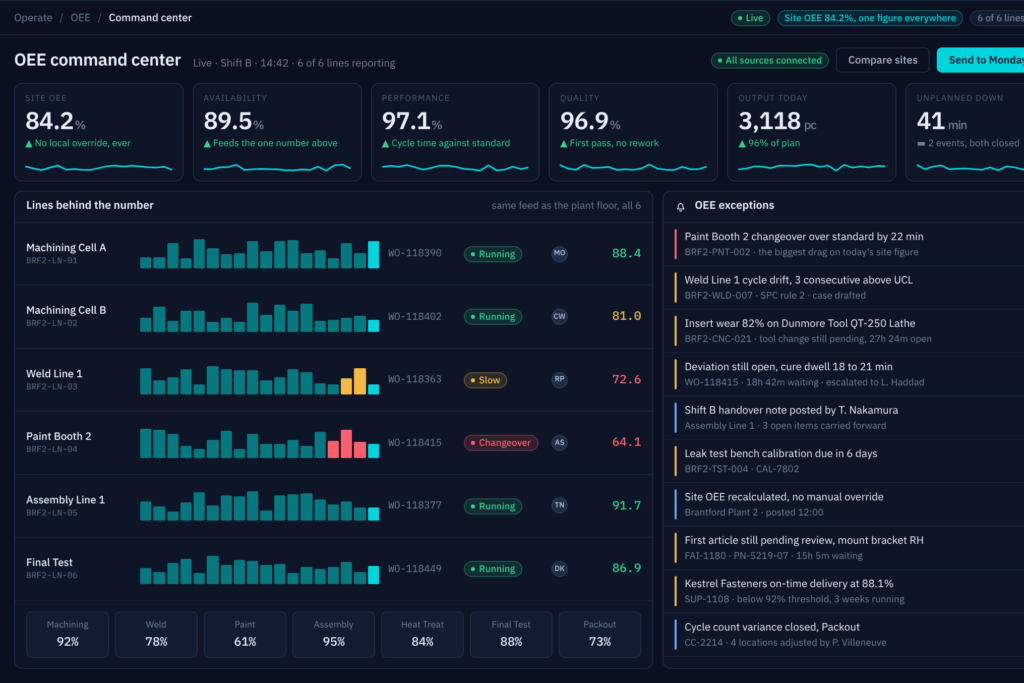

Command center

Bring the same number into every meeting

The executive summary and the command center read the same calculation the floor reads. Leadership gets one site figure, planning gets line performance, and nobody rebuilds a spreadsheet before the review.

One summary figure across the site on the executive view
Line performance on the production planning command center
No OEE spreadsheet rebuilt before the review

FAQ

Where do the numbers come from?

Does it roll up past a single asset?

Can we compare one period against another?

How are longer trends kept?

See which factor pulled your OEE down

Roll OEE up from one machine to the whole plant

Watch which assets are running, faulted or idle

Compare this week against last

Pull up a year of OEE trend in one load

Bring the same number into every meeting

FAQ

Find out what your OEE number is made of.
